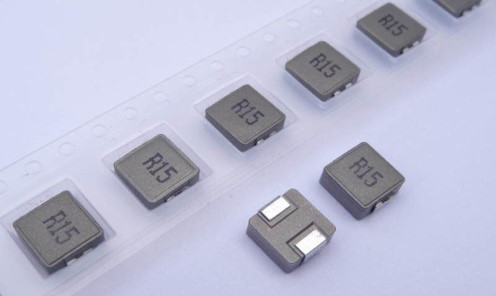

MOLDING POWER INDUCTOR.

MPIF0530 TYPE
Features

Low profile and low DCR.
Shielded construction.
handles high transient current spikes without saturation
frequency up to 3MHz
Ultra Low buzz noise, due to composite construction
100% lead (Pb) free meet RoHS standard
Applications
PDA/Notebook/Desktop, and server applications.
low profile,high current power supplies.
Battery powered devices.
DC/DC converters.

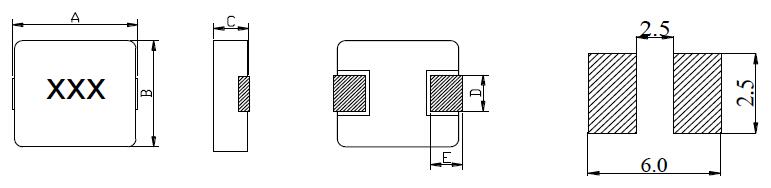

Product Dimensions [unit: inch/ mm]
MPIF05 SERIESb


 MPIF05 SERIESa

Item

Size

A

5.5±0.40

B

5.20±0.20

C

3.0 Max

D

2.30 Typ

E

1.20 Typ







Electrical characteri stics for MPIF0530 series




P/N

100KHz 1.0V

D.C.R (mΩ)

Saturation Current

Heat Rating Current

L0(μH) ±20% '@0A

Typical

Max

I sat (Amp) Typical

I rms (Amp) Typical

MPIF0530-R20M

0.20

3.50

3.90

15.00

14.00

MPIF0530-R47M

0.47

7.40

8.50

14.00

11.00

MPIF0530-R68M

0.68

11.00

12.00

12.00

9.00

MPIF0530-1R0M

1.00

11.00

15.00

10.00

9.00

MPIF0530-1R2M

1.20

15.00

16.00

11.00

9.00

MPIF0530-1R5M

1.50

13.00

18.00

9.00

8.50

MPIF0530-2R2M

2.20

21.00

24.00

7.00

6.50

MPIF0530-3R3M

3.30

33.00

38.00

6.00

5.00

MPIF0530-4R7M

4.70

50.00

60.00

4.50

4.50

MPIF0530-6R8M

6.80

75.00

90.00

3.50

3.50

MPIF0530-100M

10.00

100.00

125.00

3.20

3.20







































  • All test data is referenced to 25°C ambient

  • DC current (Irms) that will cause an approximate △ T of 40℃

  • DC current (Isat) that will cause Lo to drop approximately 30%

  • Operating temperature Range: –55°C to +125°C

  • Absolute maximum voltage 30VDC

  • Operating temperature range-55℃~125℃(Including self - temperature rise)
