MPIH SERIES MOLDING POWER INDUCTOR.

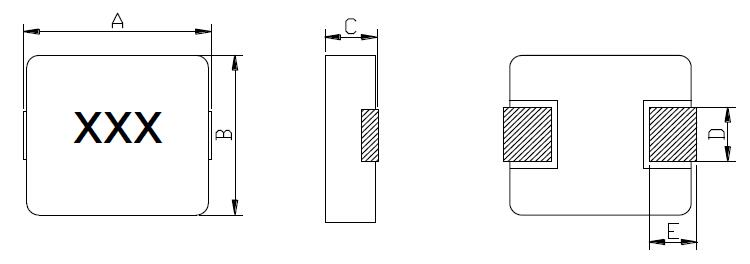

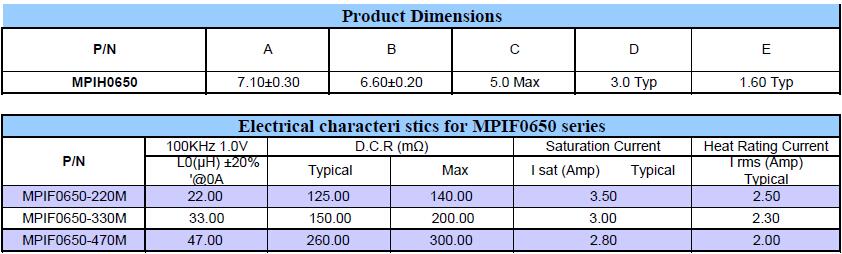

| Features High performance (Isat) realized by metal dust core. Shielded construction. handles high transient current spikes without saturation frequency up to 3MHz Ultra Low buzz noise, due to composite construction 100% lead (Pb) free meet RoHS standard Applications PDA/Notebook/Desktop, and server applications. low profile,high current power supplies. Automotive applications Product Dimensions [unit: inch/ mm]  |
   |
 |
|
| ◇：Significant Characteristic * ：If you require another part number please contact with us. • All test data is referenced to 25°C ambient • DC current (Irms) that will cause an approximate △ T of 40℃ • DC current (Isat) that will cause Lo to drop approximately 30% • Absolute maximum voltage 30VDC • Operating temperature range－55℃～155℃(Including self - temperature rise) |
|
